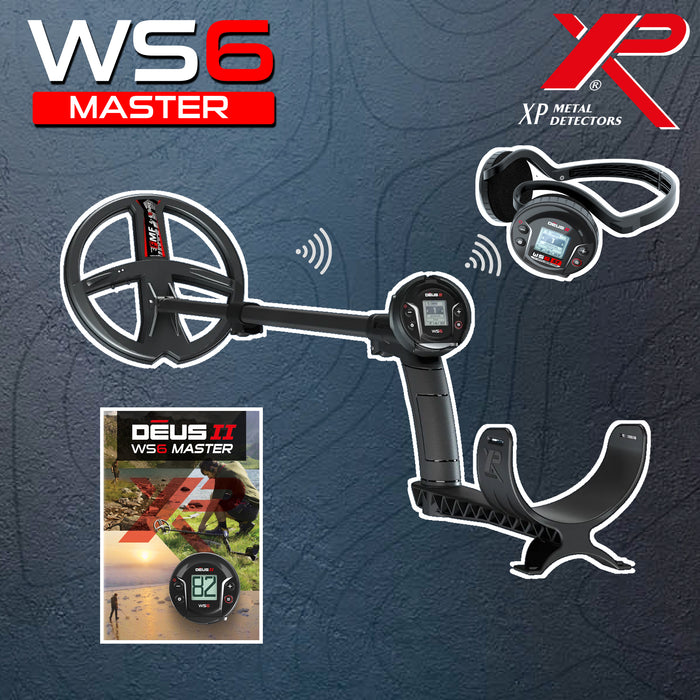

XP Deus II WS6 Master FMF Metal Detector with 11" Coil

The XP DEUS II WS6-ST Master Metal Detector with 11" FMF Coil combines XP's Fast Multi Frequency technology with a lightweight, completely wireless detector platform built for coins, relics, jewelry, beaches, fields and all-terrain treasure hunting.

This configuration pairs the versatile 11" / 28 cm FMF search coil with XP's WS6-ST stereo wireless headphones and Master control module. Unlike full DEUS II packages, there is no separate DEUS II Remote Control. The WS6-ST communicates directly with the search coil, displays Target ID and provides access to the detector's essential settings and programs.

The 11" coil operates across approximately 4–45 kHz, offers 49 selectable single frequencies, weighs approximately 470 g, and provides an excellent balance of depth, ground coverage and target separation.

Manufacturer SKU: DEUS2-28FMFWS6STE

Important: This is a WS6-ST Master configuration. A separate DEUS II Remote Control is not included.

---

Key Features

• XP FMF – Fast Multi Frequency technology

• 11" / 28 cm round wireless FMF search coil

• Approximately 4–45 kHz frequency range

• 49 selectable single frequencies

• WS6-ST stereo wireless headphones and Master controller

• No separate DEUS II Remote Control required

• 64 × 64 pixel WS6-ST display

• Accurate Target ID display

• 12 factory programs + 12 user programs

• Adjustable discrimination, Reactivity, ground settings and audio

• MI-6 wireless pinpointer compatibility

• 15-hour WS6-ST battery life

• Coil battery life up to approximately 20 hours

• Coil waterproof to 20 m / 66 ft

• WS6-ST weatherproof construction

• Fully wireless XP architecture

• Lightweight S-Telescopic Lite stem

• USB-C charging for WS6-ST

• Software-updatable platform

• Made in France

• XP 5-year warranty, subject to XP warranty terms

---

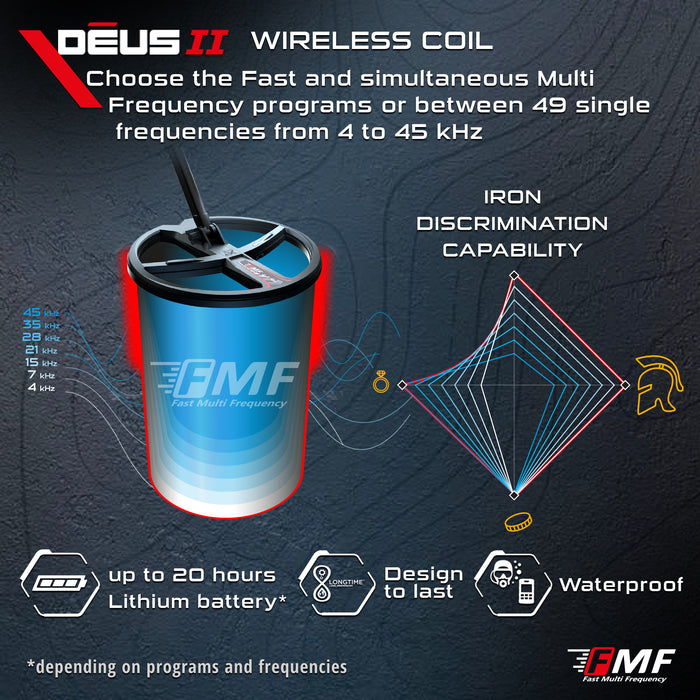

XP Fast Multi Frequency Technology

XP's FMF – Fast Multi Frequency – technology processes multiple frequencies according to the selected search program.

Lower frequencies generally favor larger and higher-conductivity targets, while higher frequencies improve sensitivity to smaller and lower-conductivity targets.

The DEUS II standard FMF coil platform covers approximately 4–45 kHz, providing versatility across:

• Coins

• Relics

• Jewelry

• Parks

• Fields

• Beaches

• Mineralized soil

• Gold-bearing ground

Users can also switch to DEUS MONO for access to 49 selectable individual frequencies.

---

11" FMF Search Coil

The included 11" / 28 cm round FMF coil is one of the most versatile coil choices for the DEUS II.

It provides noticeably greater ground coverage than the 9" coil while remaining lighter and easier to maneuver than the larger 13" x 11" coil.

This makes the 11" particularly effective for detectorists who regularly move between different environments rather than specializing in only one type of hunting.

Best Uses

• Coin hunting

• Relic hunting

• Farm fields

• Parks

• Pastures

• Old home sites

• Jewelry hunting

• Beaches

• Freshwater locations

• Mineralized soil

• General-purpose detecting

• Occasional gold prospecting

---

WS6-ST Master: Controller and Stereo Headphones in One

The key feature of DEUS2-28FMFWS6STE is the WS6-ST Master system.

The WS6-ST is much more than a pair of wireless headphones. Its removable electronic module contains its own graphic display and detector controls.

Without a separate DEUS II Remote Control, the WS6-ST connects directly to the FMF coil and acts as the master controller.

It can:

• Control the search coil

• Display Target ID

• Select programs

• Adjust sensitivity

• Adjust discrimination

• Control Reactivity

• Manage ground settings

• Adjust audio settings

• Display coil and headphone battery levels

• Store compatible coils

• Connect to the XP MI-6 pinpointer

This provides DEUS II performance without requiring a separate control box on the detector stem.

---

Flexible WS6-ST Configuration

The WS6-ST module can be used in different ways depending on hunting preference.

WS6-ST on the Headphones

Keep the control module attached to the backphones for the simplest and lightest configuration.

Target audio, detector controls and Target ID remain available through the WS6-ST.

WS6-ST Mounted on the Stem

The WS6-ST module can be removed from the headphone frame and mounted to the detector stem using a compatible support.

This places the display in front of the operator for easier viewing of Target ID and settings. A compatible separate headphone option can then be used for audio.

Add a DEUS II Remote Later

A compatible full DEUS II Remote Control can be purchased separately.

When added, the Remote becomes the system master while the WS6-ST can operate as the stereo wireless headphone system.

This makes the WS6-ST Master package an expandable entry point into the complete DEUS II ecosystem.

Important: The WS6-ST is weatherproof, not designed for underwater submersion. The 11" FMF coil itself is waterproof to 20 m / 66 ft.

---

12 Factory Programs + 12 User Programs

The WS6 Master platform provides 12 factory search programs and 12 user-program positions.

Program	Primary Use
General	Everyday detecting, coins, jewelry and mixed terrain
Sensitive	Small targets and mineralized ground
Sensi FT	Full Tones with faster response
Fast	Iron-heavy and contaminated locations
Park	Parks and modern trash
Deep HC	Deeper high-conductivity targets
Deus Mono	Selectable single-frequency detecting
Gold Field	Gold prospecting and mineralized soil
Relic	Larger and deeper relic targets
Diving	Saltwater-oriented detecting
Beach	Wet salt sand and surf
Beach Sens	Increased sensitivity in salt environments

The 12 user slots allow detectorists to save customized setups for their own sites and hunting styles.

---

Advanced Detector Controls

Despite its compact size, WS6 Master provides access to important DEUS II adjustments including:

• Sensitivity

• Discrimination

• Reactivity

• Audio Response

• Iron Volume

• Notch

• Threshold

• Ground Grab

• Ground adjustment

• Target ID

• Frequency selection

• Pinpoint / non-motion mode

• Audio settings

• Fast Frequency Scan for EMI management

• Custom program storage

A configurable 4-band equalizer also allows audio to be adjusted for personal hearing preferences and target response.

---

Lightweight S-Telescopic Lite Design

This package uses XP's S-Telescopic Lite stem rather than the heavier full-control configuration.

The telescopic design collapses quickly for transportation and expands for detecting without requiring a conventional multi-piece shaft.

Combined with the WS6-ST Master design, it creates a particularly lightweight detector for:

• Long detecting sessions

• Large fields

• Wooded terrain

• Travel

• Users who prefer minimum swing weight

• Hunters who do not need a full-size Remote screen

---

Fully Wireless XP Architecture

The DEUS II FMF search coil contains its own detection electronics and communicates wirelessly with the WS6-ST through XP's proprietary radio system.

There is no conventional coil cable running up the shaft.

Compatible components within the XP ecosystem include:

• DEUS II FMF search coils

• WS6-ST Master

• Optional DEUS II Remote Control

• Compatible XP wireless headphones

• Optional MI-6 wireless pinpointer

This keeps the detector clean, lightweight and highly modular.

---

Coin, Relic & Jewelry Hunting

The 11" FMF coil makes this package particularly strong as an all-purpose detector.

For coin hunting, the coil provides more ground coverage than the 9" while retaining very good separation in parks and older sites.

For relic hunting, adjustable Reactivity and fast FMF processing help identify desirable non-ferrous targets among iron.

For jewelry hunting, the broad frequency range provides sensitivity across different target sizes and conductivities.

The 11" coil is particularly useful for detectorists covering larger:

• Parks

• Fields

• Historic properties

• Farm sites

• Beaches

• Pastures

where ground coverage matters without moving to XP's largest coil.

---

Beach & Water Detecting

DEUS II includes dedicated Beach and Beach Sens programs designed for conductive wet salt environments.

The 11" FMF coil is waterproof to 20 m / 66 ft, making it suitable for wet sand, surf and submerged use when the complete detector is configured appropriately.

The WS6-ST itself is weatherproof rather than submersible. Appropriate XP underwater accessories and audio equipment are therefore required for deeper underwater detecting.

For conventional beach hunting, however, the larger 11" search area makes this configuration especially attractive because it covers more sand with every sweep than the 9" version.

---

Gold Prospecting & Mineralized Ground

DEUS II includes the dedicated Gold Field program for highly mineralized gold-bearing ground.

The standard FMF coil reaches approximately 45 kHz, providing sensitivity to smaller and lower-conductivity targets while maintaining strong general-purpose capability.

For users focused almost exclusively on very small natural gold, XP's HF2 high-frequency coil offers greater specialized high-frequency performance.

The 11" standard FMF configuration is better suited to users who want one detector for coins, relics, jewelry, beaches, fields and occasional prospecting.

---

XP DEUS II Coil Comparison: 9" vs 11" vs 13" x 11"

Feature	9" FMF Coil	11" FMF Coil	13" x 11" FMF Coil
Dimensions	9" / 22.5 cm	11" / 28 cm	13" x 11" / 34 x 28 cm
Frequency Range	4–45 kHz	4–45 kHz	4–45 kHz
Single Frequencies	49	49	49
Weight	Approx. 345 g	Approx. 470 g	Approx. 570 g
Target Separation	Excellent	Very Good	Good
Maneuverability	Excellent	Very Good	Moderate
Iron-Heavy Sites	Excellent	Very Good	Good
Ground Coverage	Moderate	Excellent	Maximum
Open Fields	Very Good	Excellent	Excellent
Beach Hunting	Very Good	Excellent	Excellent
Coin Hunting	Excellent	Excellent	Very Good
Relic Hunting	Excellent	Excellent	Excellent
Swing Weight	Lightest	Balanced	Heaviest
Best For	Separation & tight areas	Best all-around balance	Maximum ground coverage

The 11" FMF coil included with DEUS2-28FMFWS6STE offers the strongest middle ground between the three standard coil sizes.

It provides greater coverage than the 9" while remaining easier to maneuver than the 13" x 11", making it an excellent choice for users who want a single coil for a wide range of detecting conditions.

---

Battery Performance

Component	Approximate Battery Life
11" FMF Coil	Up to approx. 20 hours depending on program/frequency
WS6-ST Master	Approx. 15 hours

The WS6-ST uses USB-C charging and supports fast charging in less than approximately three hours.

Actual runtime can vary according to program, frequency, temperature, battery condition and use.

---

MI-6 Pinpointer Compatibility

The WS6-ST supports wireless integration with the XP MI-6 Pinpointer, available separately.

When paired, the MI-6 becomes part of the XP wireless ecosystem and can communicate with the detector and compatible XP audio equipment.

The MI-6 is not included with DEUS2-28FMFWS6STE unless specifically offered as a separate Detector Warehouse bundle.

---

Software Updates

The DEUS II WS6 Master platform supports USB software updates.

XP can provide compatible performance refinements and system improvements through firmware without requiring replacement of the detector hardware.

---

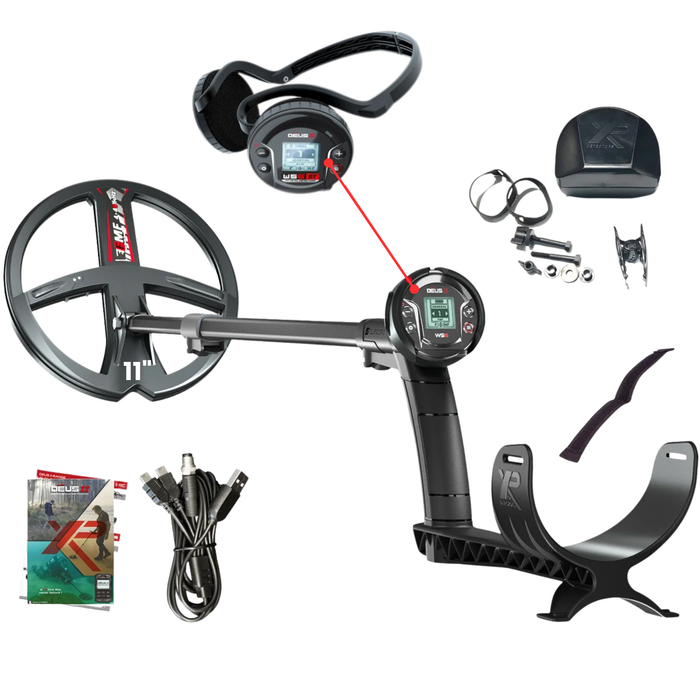

What's Included

The DEUS2-28FMFWS6STE package includes:

• XP DEUS II WS6-ST Master Metal Detector

• 11" / 28 cm FMF wireless search coil

• Search coil cover

• WS6-ST stereo wireless headphones / Master control module

• Backphone headset frame

• S-Telescopic Lite stem

• Lower stem

• Coil mounting hardware

• USB charging / update cable

• Coil charging connection

• Underwater antenna wire

• User documentation

A separate DEUS II Remote Control is not included.

---

Who Is This Configuration Best For?

All-Around Detectorists
The 11" coil provides an excellent balance of coverage, depth, separation and maneuverability.

Coin Hunters
Greater coverage than the 9" makes it efficient in parks and fields while retaining very good target separation.

Relic Hunters
Well suited to farm fields, historic properties and larger relic sites.

Beach Hunters
The 11" coil covers more sand per sweep while DEUS II provides dedicated saltwater programs.

Field Hunters
Excellent ground coverage without moving to the heavier 13" x 11" coil.

Detectorists Who Prefer Lightweight Equipment
The WS6-ST eliminates the need for a separate full-size Remote Control.

Users Who Want Future Expandability
A DEUS II Remote Control, MI-6 Pinpointer and other compatible XP accessories can be added separately.

---

Frequently Asked Questions

What is DEUS2-28FMFWS6STE?

It is the XP DEUS II WS6-ST Master package with an 11" / 28 cm FMF coil, WS6-ST stereo headphones/controller and lightweight telescopic stem.

Does this package include the DEUS II Remote Control?

No. The WS6-ST acts as the detector's master controller.

Can WS6-ST control the detector by itself?

Yes. It connects directly to the FMF search coil and provides Target ID, program selection and detector adjustments.

Can I add a full DEUS II Remote later?

Yes. A compatible DEUS II Remote Control can be purchased separately and added to the system.

What frequencies does the 11" coil use?

Approximately 4–45 kHz, with FMF operation and 49 selectable individual frequencies.

How much does the 11" coil weigh?

Approximately 470 g.

Is the 11" coil waterproof?

Yes. XP rates it waterproof to 20 m / 66 ft.

Is the WS6-ST waterproof?

The WS6-ST is weatherproof, not designed for underwater submersion.

How many programs are available?

The WS6 Master platform provides 12 factory programs plus 12 user-program positions.

How does the 11" coil compare with the 9"?

The 11" provides greater ground coverage and strong depth potential, while the 9" is lighter and better suited to extremely tight or iron-heavy locations.

How does the 11" compare with the 13" x 11"?

The larger coil covers more ground, but the 11" is lighter and easier to maneuver. For general-purpose detecting, the 11" provides a more balanced combination of size, coverage and handling.

Is the MI-6 compatible?

Yes. The WS6-ST supports wireless integration with the XP MI-6 Pinpointer. MI-6 is sold separately unless included in a specific bundle.

Is this detector good for beaches?

Yes. DEUS II provides dedicated Beach and Beach Sens programs, while the 11" coil offers excellent ground coverage on open sand.

Can it detect natural gold?

Yes. Gold Field mode and frequencies reaching approximately 45 kHz provide gold-prospecting capability. XP's HF2 configuration is more specialized for extremely small natural gold.

Can it receive software updates?

Yes. The WS6 Master platform supports official XP software updates.

---

Final Overview

The XP DEUS II WS6-ST Master with 11" FMF Coil combines DEUS II's advanced multi-frequency performance with a lightweight control system and one of XP's most versatile search coils.

Its 4–45 kHz FMF platform, 49 selectable frequencies, 11" coil, 12 factory programs, advanced detector controls and WS6-ST stereo Master system make it suitable for coins, relics, jewelry, parks, fields, beaches and mineralized ground.

Compared with the 9" WS6-ST configuration, the 11" coil provides greater ground coverage and strong depth potential, while remaining more manageable than the larger 13" x 11" coil.

For detectorists who want all-around DEUS II performance without carrying or paying for the separate full Remote Control, DEUS2-28FMFWS6STE is one of the most balanced WS6-ST Master configurations.
