Fisher Ground Rod Assembly for TW6 Pipe & Cable Locator

Description

Improve conductive utility tracing with the Fisher Ground Rod Assembly for the TW6 Pipe & Cable Locator.

Designed specifically for the Fisher TW6, this accessory provides the grounding connection needed when tracing buried conductive utilities using the locator’s conductive mode.

The assembly includes a sturdy grounding rod and a wire assembly with two alligator clips, allowing the TW6 transmitter to be connected securely to a pipe or cable while the rod provides a reliable earth ground.

Key Features

• Designed for Fisher TW6 – Genuine accessory for the Fisher TW6 Pipe & Cable Locator.

• Conductive Tracing Accessory – Used when making a direct transmitter connection to buried conductive utilities.

• Grounding Rod Included – Inserts into the soil to provide a reliable ground point.

• Wire Assembly Included – Connects the transmitter to the target utility and ground rod.

• Two Alligator Clips – Provides straightforward attachment during setup.

• Helps Improve Signal Strength – Supports a stronger conductive tracing circuit.

• Supports More Precise Locating – Useful when accurately tracing buried pipes and cables.

• Quick Field Setup – Simple configuration for professional utility-locating work.

• Genuine Fisher Accessory – Manufactured by First Texas Products.

Designed for the Fisher TW6

This ground rod assembly is designed for use with the:

Fisher TW6 Pipe & Cable Locator

First Texas lists it directly in the official TW6 parts and accessories catalog.

The TW6 supports both inductive and conductive locating methods. This accessory is specifically useful when operating in conductive tracing mode, where the transmitter is connected directly to the utility being traced.

How the Ground Rod Assembly Works

In conductive tracing, the transmitter needs a complete electrical circuit.

The ground rod is inserted into the soil to create the ground side of that circuit, while the wire assembly connects the TW6 transmitter to the pipe, cable, or other conductive utility.

The included alligator clips make it easier to establish those connections in the field.

A proper grounding point can help improve:

• Signal strength

• Trace consistency

• Utility identification

• Locating precision

Ideal for Pipe & Cable Tracing

The Ground Rod Assembly is useful when tracing conductive buried utilities such as:

• Metallic water lines

• Gas lines

• Electrical conductors

• Telecommunications lines

• Other conductive pipes and cables

Actual tracing performance depends on soil conditions, utility conductivity, connection quality, transmitter setup, and environmental interference.

Quick Field Setup

First Texas describes the ground rod as being designed for quick and easy setup.

The basic workflow is:

1. Insert the grounding rod securely into the ground.

2. Connect the appropriate lead to the grounding rod.

3. Connect the other lead to the pipe or cable being traced.

4. Connect the assembly to the TW6 transmitter.

5. Operate the locator in the appropriate conductive tracing mode.

Always follow the Fisher TW6 operating manual for the proper connection sequence and safe utility-locating procedures.

Technical Specifications

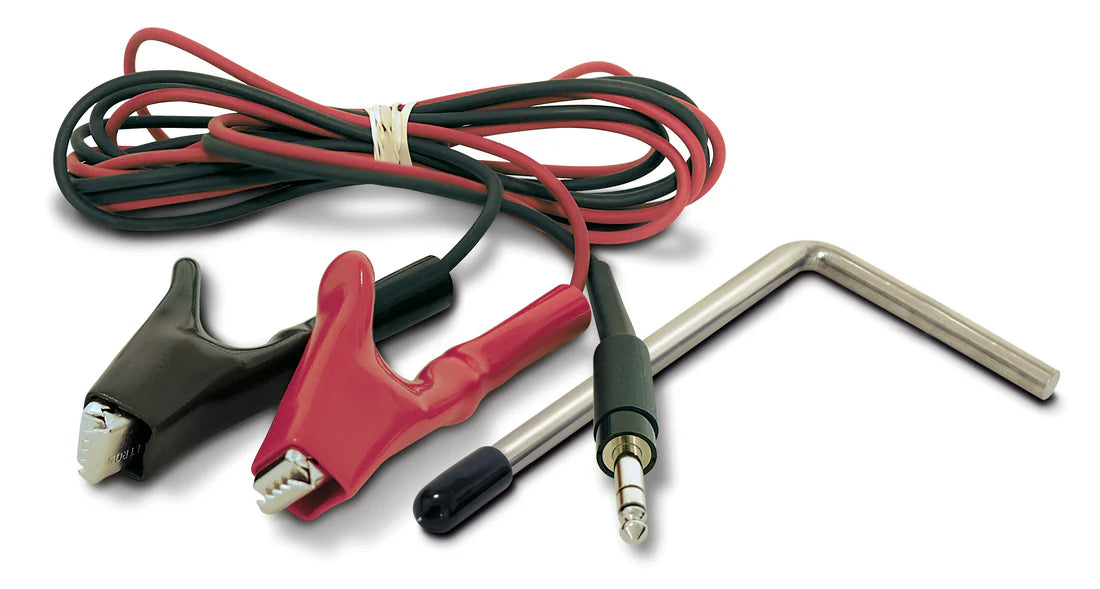

What's Included

• 1 × Grounding Rod

• 1 × Wire Assembly with Two Alligator Clips

GROUND ROD ASSEMBLY ONLY.

Fisher TW6 locator, transmitter, receiver, carrying case, coupling clamp, tracer probe, and other accessories are not included.

Why Choose the Fisher TW6 Ground Rod Assembly?

Conductive tracing requires a reliable direct connection between the transmitter, the utility being traced, and ground.

The Fisher Ground Rod Assembly provides the components needed to create that connection using the TW6, with a sturdy ground rod and dual-clip wire assembly designed for straightforward field setup.

For technicians using the Fisher TW6 Pipe & Cable Locator, it is an essential accessory for conductive tracing applications where a direct utility connection provides the best locating result.
