Minelab GPX 6000 vs Nokta Magnetar 9000: The Complete Gold Detector Comparison

Quick Verdict (Comparison Table)

Same weight, different mission. Both detectors land at 2.1 kg, but only one of them can go in the water.

For many years, the GPX 6000, which is renowned for its depth and stability in mineralized soils, has been the reliable flagship for serious gold prospecting. Nokta's first pulse induction detector, the Magnetar 9000, was introduced with two coils and complete waterproofing. Before we get into more detail about each category, here is how they compare.

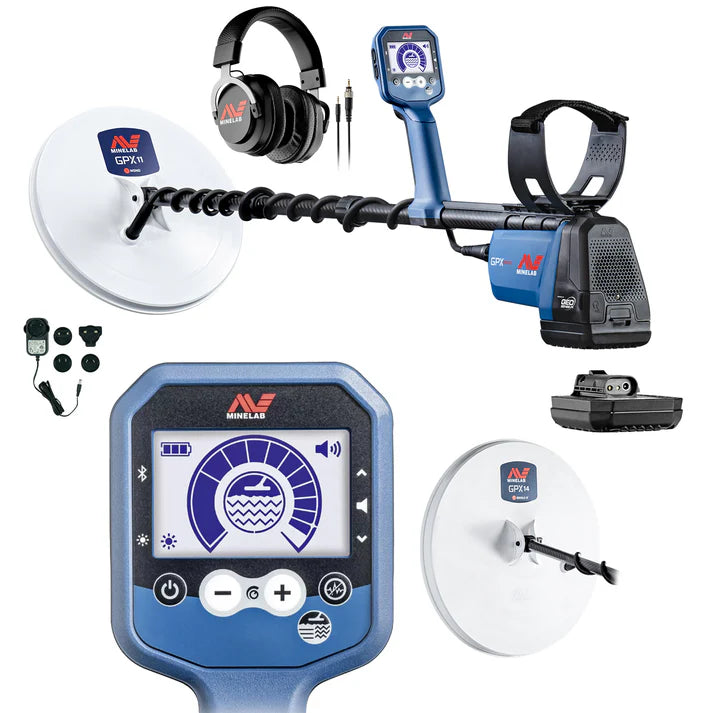

What Is the Minelab GPX 6000?

A dedicated gold machine, simplified. Minelab stripped out the manual tuning that intimidated newcomers to older GPX models.

Minelab's gold prospecting pulse induction detector, the GPX 6000, is lighter and more straightforward than previous GPX versions. While maintaining the depth and microscopic gold sensitivity that made prior GPX machines a professional standard across goldfields worldwide, preset ground types replace the manual adjustment that used to scare novices.

Key Technology (Pulse Induction, ZVT)

Minelab's Zero Voltage Transmission platform, a sophisticated pulse induction technique designed to penetrate mineralized soil, powers the GPX 6000. Compared to VLF detectors on hot rocks and heavy mineralization, it is significantly less prone to false readings when strong current rushes through the coil and the return signal decays.

• Reduces mineral interference at the signal level
• Preset ground types remove most manual tuning
• Compatible with a wide range of Minelab and aftermarket coils

Who It's Built For

This is not a coin and relic detector; rather, it is a specialized gold machine. Owners upgrading from prior GPX models who desire the same depth without the additional weight, as well as prospectors working known goldfields, dry stream beds, or arid terrain, will find it suitable. For most buyers, it is a second or third detector due to its price.

What Is the Nokta Magnetar 9000?

Nokta's first PI machine went straight for the flagship tier. No budget entry, no easing in, just a direct challenge to Minelab's top end.

For a company based on VLF machines like the Nokta Legend 2 and Simplex, the Magnetar 9000 is the company's first pulse induction release. Instead of starting with a low-cost model, Nokta went right for the top tier, introducing dual coil technology and waterproofing that no detector in this class had before provided.

Dual Receiver Coil (DRC) Technology Explained

DRC improves response time and distinguishes real gold from ground noise by using two receiving elements in tandem to read targets more clearly than a single coil arrangement. Although Nokta has not yet released a comprehensive technical analysis, testers have compared its behavior to Minelab's GPZ 7000 coil technology.

• Two coils included: 14.5" x 13" for depth, 11" x 8" for small targets
• Built to reduce ground noise while keeping response fast
• Fully waterproof on both coils, not just the control box

Nokta's First PI Detector: Why It Matters

Entering pulse induction at the flagship level rather than a low-cost tier indicates genuine faith in the platform, as Nokta earned its reputation on simultaneous multi frequency VLF machines. The project is driven by an engineering team headed by a veteran NASA engineer, and the Magnetar 9000 is not intended to be a one-time release but rather to launch a comprehensive PI portfolio.

Depth and Sensitivity Comparison

Depth is close. Signal stability is the real gap. Early side by side tests put both machines in the same ballpark on deep targets.

Prospectors are primarily concerned with depth and sensitivity, and the GPX 6000 has years of verified field data from goldfields in Australia and the western United States. Although the Magnetar 9000 is more recent, early tester evaluations have shown it to be on par with or better than the GPX 6000 on a number of target sizes, with results varying based on the choice of coil and ground.

Large Deep Gold Performance

The ZVT platform of the GPX 6000 has a track record of extracting nuggets from large, deep targets that previous technology was unable to. The bigger DRC coil of the Magnetar 9000 directly competes in this area, and preliminary side-by-side tests indicate that it can hold its own on huge deep targets; the true difference is in signal stability rather than raw depth.

Small and Micro Nugget Sensitivity

The smaller coil of the Magnetar 9000 was designed especially for fine and micro gold, a market where sensitive VLF instruments have historically outperformed PI detectors. The sensitivity difference between the two is smaller than either brand's marketing implies because the GPX 6000 still works well on tiny nuggets with the appropriate coil attached.

Build Quality and Field Durability

Identical weight, different protection level. One machine can follow you into a creek. The other cannot.

Nokta investigated what made the GPX 6000 comfortable over long days, and both detectors landed at the same weight of 2.1 kilograms, which is a genuinely small figure for pulse induction machines. Protection is the true difference: Nokta pushed the Magnetar 9000 into fully submersible area, while Minelab designed the GPX 6000 as a dry weather machine.

Weight and Balance (2.1kg Comparison)

Over the course of a whole day, neither machine will exhaust your arm more quickly than the other due to their matching weight of 2.1 kg. The GPX 6000 was praised for reducing bulk in comparison to previous GPX models; however, the more noteworthy engineering accomplishment is that Nokta matched that number on the Magnetar 9000 while adding complete waterproofing, as sealed housings typically add weight.

Waterproofing: IP68 Rated to 3 Metres

Shaft and Coil Design

No connector is exposed to water risk because the Magnetar 9000 uses a carbon fiber telescopic shaft with coils encapsulated as part of the waterproof construction. The GPX 6000 gives users access to years' worth of aftermarket coil alternatives that the more recent Magnetar platform has not yet developed by utilizing Minelab's established coil ecosystem.

Battery Life and Power

One machine ships with a spare battery built into the plan. The other leaves runtime up to whichever pack you buy.

Long field days were taken into consideration when designing the Magnetar 9000, which has a rechargeable system and a spare battery so you never have to wait for a charger. Compared to Nokta's more uniform approach, the GPX 6000's runtime varies more with configuration and is dependent on the battery pack being used.

Runtime Per Charge

The Magnetar 9000 is rated by Nokta for up to ten hours per charge, which is more than enough to cover an entire prospecting day. Battery configuration affects the GPX 6000's runtime, and using high sensitivity settings will result in shorter sessions than what is advertised. The rated number of the Magnetar 9000 is the more obvious benchmark if uninterrupted all-day runtime is important.

Charging and Power Management

The Magnetar 9000 ships with two rechargeable batteries and a charger, letting one charge while the other stays in the field, effectively eradicating downtime for multi day expeditions. The GPX 6000 follows Minelab's established battery ecology, and owners with other Minelab devices may find some pack compatibility, however budgeting for a spare is worth figuring in either way.

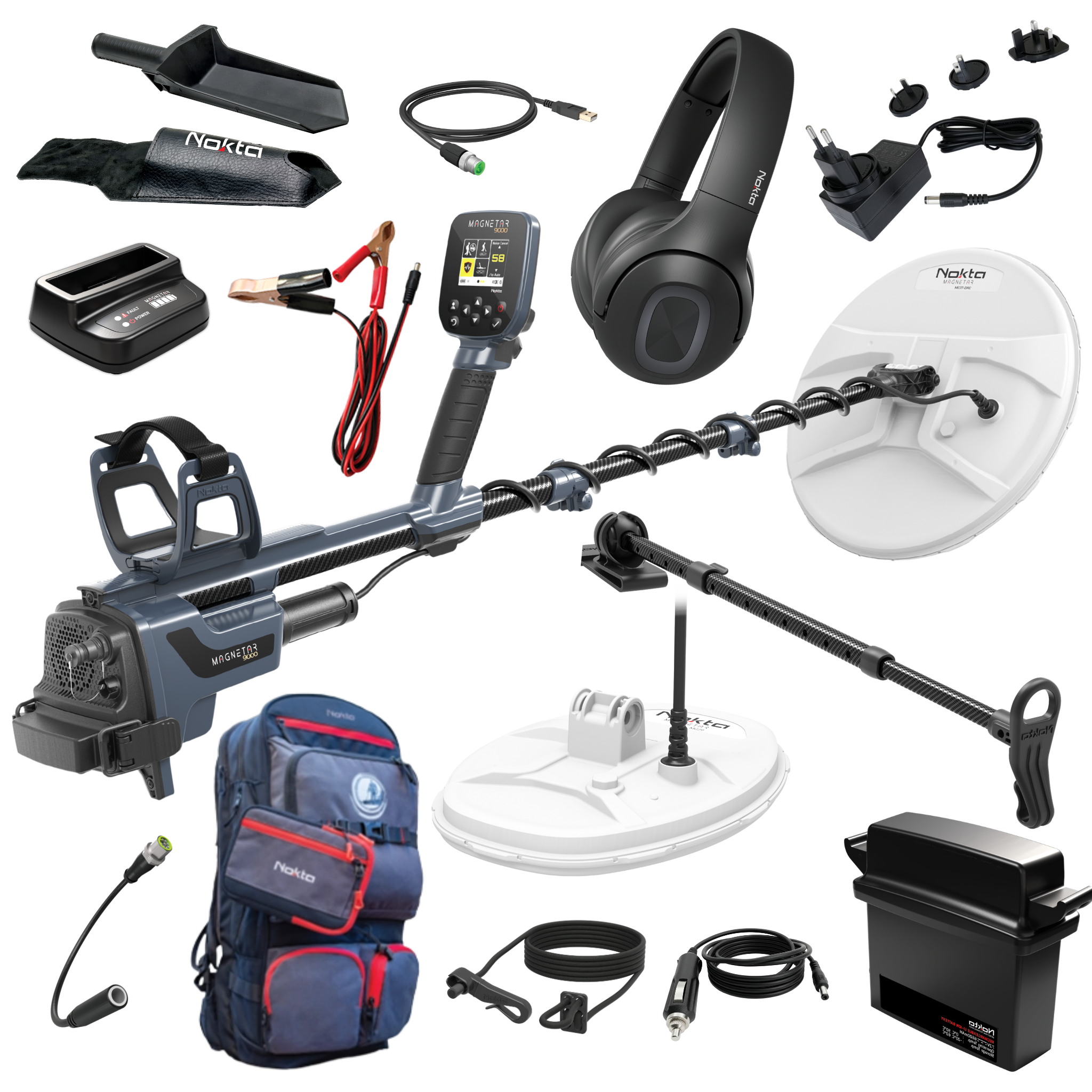

Included Coils and Accessories

What's in the box changes the real price. One machine arrives ready for both depth and small gold. The other usually needs a second purchase to match.

What ships in the box shapes the real cost of ownership more than the sticker price. The Magnetar 9000 launched with two coils standard, covering both depth and small gold sensitivity immediately. The GPX 6000's coil situation depends more on region and bundle, and many purchasers install a second coil separately to meet that similar range.

Magnetar 9000's Dual DRC Coil Package (MG37, MG29)

The MG37 at 14.5 by 13 inches tackles depth focused hunting, while the MG29 at 11 by 8 inches covers smaller targets and tighter rubbish filtering. Both ship standard and share the same waterproof certification as the rest of the machine, so a new owner can relocate from dry hillside to shallow creek without an additional purchase.

• MG37: 14.5" x 13", built for depth
• MG29: 11" x 8", built for small gold and tighter control
• Both fully waterproof and included at no extra cost

GPX 6000 Coil Options

Minelab sells the GPX 6000 with a primary coil, and owners expanding their size range typically buy additional coils from Minelab's lineup or third party makers like Nugget Finder and Coiltek. This enables long term flexibility from a mature ecosystem, but it entails more purchases to match the range the Magnetar 9000 offers from day one.

Ease of Use: Beginner vs Expert Control

Two very different answers to the same problem. Minelab simplified one interface. Nokta built two modes into one machine.

Neither machine is a true first detector, but there is still a considerable gap in approachability. Minelab streamlined the GPX 6000's UI with predefined ground types instead of manual settings. Nokta chose a different way with the Magnetar 9000, developing two operating modes so the same detector may serve a first time PI user and an experienced prospector alike.

Easy Mode vs Expert Mode

Easy Mode uses appropriate presets for guided setup, minimizing much of the guesswork that has historically made PI detectors intimidating. Expert Mode allows full manual control over ground balance, sensitivity, and audio response for skilled operators. The same hardware supports both skill levels without any adjustments needed.

• Easy Mode: guided presets for fast setup
• Expert Mode: full manual control for experienced users
• No hardware changes needed to switch between them

Learning Curve for New Prospectors

The GPX 6000's predefined ground types cut down its learning curve greatly compared to prior Minelab PI equipment, yet operators still need to grasp ground balance and audio based discrimination. The Magnetar 9000's Easy Mode is undoubtedly the softer starting point for someone who has never ran a PI detector before.

Ground Balance and Mineralized Soil Performance

One has years of proof. The other has an engineering promise still being tested. Both are built for the same problem: mineralized dirt.

The ZVT platform of the GPX 6000 automatically adapts to mineralization using preset profiles that have been shown to be dependable over years of usage in goldfields. The Magnetar 9000 approaches the same problem through its DRC coil system, helping differentiate real targets from ground noise, however it has less accumulated field history to make broad conclusions from.

Handling Hot Rocks and Salt Ground

With its lengthy history of handling hot rocks using ZVT signal processing, the GPX 6000 gives seasoned prospectors confidence in terrain they already know is challenging. Although independent long-term data is still being gathered, early tester reports from salt-affected ground identify the Magnetar 9000 as stable. Its coils were designed for such situations.

Price and Value Comparison

Cheaper on paper does not always mean cheaper in practice. Once you add matching accessories, the real gap narrows fast.

At debut, the Magnetar 9000 was more expensive than the GPX 6000 and less expensive than Minelab's GPZ 8000. What changes the value picture is everything included standard: two waterproof coils, Bluetooth audio, and a spare battery, while GPX 6000 purchasers commonly add these as separate purchases, decreasing the real cost disparity.

Upfront Cost Breakdown

The GPX 6000 has the lower entry price, making it more accessible for a tighter budget while yet giving proven PI performance. The Magnetar 9000 sits taller, showing Nokta's conscious determination to compete at the highest end. For purchasers focused only on sticker price, the GPX 6000 remains the cheaper way into serious PI prospecting.

Cost Per Feature (Waterproofing, Coils, Audio)

When a GPX 6000 configuration is equipped with wireless audio, a second coil, and an extra battery, the price difference with the Magnetar 9000 quickly narrows. The GPX 6000 cannot be modified with waterproofing to the Magnetar's level at any cost. The Magnetar 9000 frequently offers comparable or greater value for consumers who desire two coils and complete submersibility right away.

Audio and Software

Wireless out of the box versus wireless as an add on. A small daily difference that adds up over long hunts.

While the GPX 6000 usually needs wireless audio as an additional item, the Magnetar 9000 comes with Bluetooth wireless audio and a built-in speaker. Additionally, Nokta designed the Magnetar 9000 for firmware updates that gradually improve ground balance and target response—a tactic the company has effectively employed throughout its VLF series.

Bluetooth Wireless Audio and Built-In Speaker

You are never restricted to a single listening method when you have both a speaker and basic Bluetooth, which is helpful for long cable-free excursions or informal gatherings. Owners of GPX 6000s who want the same convenience usually need a separate audio attachment, which raises the previously mentioned setup cost.

Software Update Support

Nokta is known for releasing firmware upgrades more quickly than its bigger rivals in response to consumer input. By applying that strategy to the Magnetar 9000, owners can anticipate that, as actual field data accumulates, ground balance handling and target response will continue to improve after purchase.

Real-World Field Comparisons and Expert Opinions

Longtime GPZ 7000 owners are taking notice. Some experienced reviewers say they can no longer recommend the older Minelab flagship over the Magnetar 9000.

The Magnetar 9000 is performing competitively against Minelab's more expensive PI machines, according to independent reviewers with decades of prospecting experience. Some longtime GPZ 7000 users claim they can no longer recommend the older flagship over Nokta's new release given the price and feature set. As more Magnetar 9000 field hours are accrued, many seasoned prospectors are waiting and seeing before moving platforms, and the GPX 6000 still has a sizable group of devoted owners with years of confirmed findings.

Which Detector Should You Buy?

Let your hunting ground decide, not the spec sheet. Dry goldfields point one way. Wet, mixed terrain points the other.

Since the best option depends on where you hunt and what you value most, there is no one proper solution. The GPX 6000 is a reliable choice if you're looking for results in dry ground. The Magnetar 9000 is designed with versatility in mind if you're looking for a machine that covers various ground types and comes with both coils as standard. See our guide to the Best Gold Metal Detectors for a more comprehensive look at other choices.

Choose the GPX 6000 If...

If you seek proven dry goldfields, have compatible Minelab coils already, or want a detector with years of accumulated field reports and a sizable, knowledgeable community, go with the GPX 6000. Because flagship pulse induction detecting has a reduced entry price, it also suits a tighter budget.

• Best for dry, established goldfield conditions
• Good fit if you already own compatible coils
• Lower upfront entry price

Choose the Magnetar 9000 If...

Select the Magnetar 9000 if you search near creeks, gullies, or shallow water and want complete submersion; if you want two coils that cover depth and little gold right away; or if you value the base package's built-in wireless audio and spare battery.

• Best for wet, shallow water, or mixed terrain prospecting
• Two coils and spare battery included standard
• Strong fit for buyers who want built in wireless audio

Where to Buy the GPX 6000 and Magnetar 9000

Buy from a dealer who can actually support the machine after purchase. Ground balance help matters more than a few dollars off the sticker price.

Once you determine which detector fits your hunting approach, buying from a dealer who understands pulse induction technology makes a huge difference. Detector Warehouse carries both the Minelab GPX 6000 and the Nokta Magnetar 9000, supported by manufacturer warranty coverage and a crew that will assist you set up ground balance for your individual soil before you walk into the field.

Minelab GPX 6000

Proven depth and stability for dry, mineralized goldfields.

View GPX 6000

Nokta Magnetar 9000

Fully waterproof, two coils included, built for depth and small gold.

View Magnetar 9000

Shop Both Detectors at Detector Warehouse

Frequently Asked Questions

Final Verdict
