User Manual
Here is what you will receive with the minelab GPZ 8000 Gold Detector:

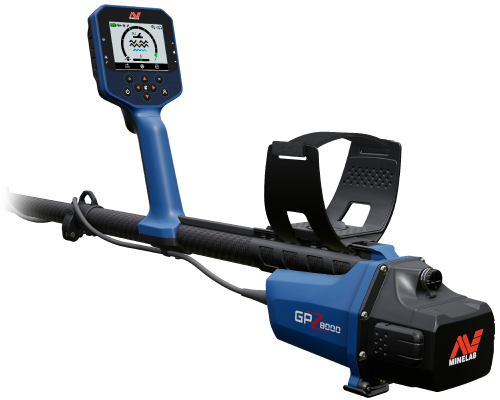

The Minelab GPZ 8000 represents the next generation of professional gold prospecting technology. Built for serious prospectors who demand maximum depth, sensitivity, and performance, this advanced detector introduces powerful improvements designed to locate gold nuggets in even the most challenging ground conditions.
Powered by Minelab’s GeoZVT™ technology, the GPZ 8000 pushes detection capability beyond traditional metal detectors. It combines exceptional sensitivity to small gold with the ability to detect larger nuggets buried deeper in highly mineralized soils. This makes it an ideal tool for prospectors working in demanding goldfields across Australia, Africa, North America, and other mineral-rich regions.
The GPZ 8000 also introduces a new toroidal coil system designed to improve target clarity and ground stability. These coils enhance signal precision, allowing prospectors to better distinguish gold targets from mineralized soil. Combined with improved signal processing and enhanced audio feedback, the detector delivers clearer target identification and increased confidence in the field.
|
Key Technologies |
GeoZVT™, Echo Sonic Pro™ Audio |
| Search Modes | Normal Deep Difficult Difficult Deep Normal Extra Deep |
| Waterproof | Detector, Coil, and WM 14 Waterproof - 1 m (3.3 ft) for < 30 mins |
| Sensitivity | Manual (1-10), Auto, and Auto+ |
| Volume Control | 1 to 17 |
| Noise Cancel | Auto & Manual |

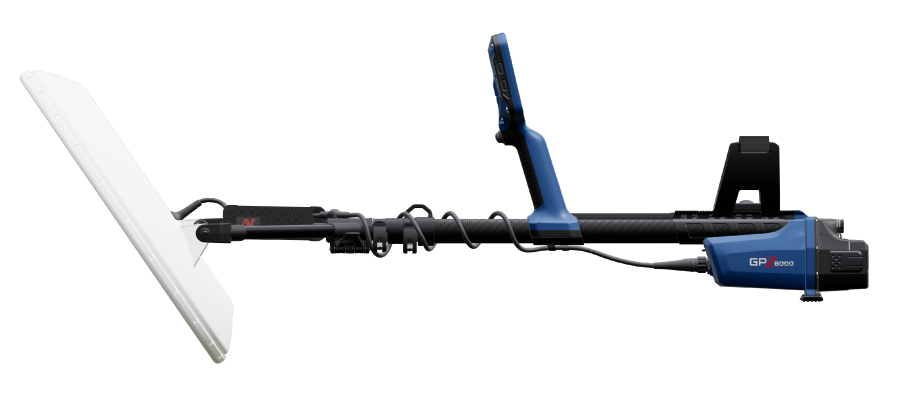

| Search Coil | Z18 18" Concentric Toroidal Coil (waterproof to 1 m/3 ft) |
| Audio Features | Low-Latency WM 14 Wireless Audio Module |
| Headphones | Audiophile Wired 3.5 mm Headphones |
| Target Tones | Continuous |
| Display | Full Color LCD |
| Display Backlight | White (1 -3) |
| Keypad Backlight | No |
| Flashlight | Yes, White (1-3) |
| Vibration | No |
| Battery | Inluded two Li-ion rechargeable batteries |
| Weight | 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery) |
| Length | Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”) Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”) |
| Warranty | 3 Years Control Box and Coil |
Advanced GeoZVT™ Technology
Minelab’s proprietary GeoZVT technology delivers superior depth and sensitivity compared to traditional metal detection methods. This system enhances the ability to detect both tiny gold flakes and larger nuggets buried deep underground.Exceptional Depth Performance
The GPZ 8000 is engineered to deliver outstanding depth capability when searching for natural gold deposits. Its advanced detection system continuously analyzes soil conditions and adjusts performance to maintain strong target signals even at greater depths. This allows prospectors to uncover gold that may have been missed by previous detectors used in the same area, making it an ideal choice for experienced prospectors working in challenging goldfields.
Echo Sonic Pro™ Audio System
The GPZ 8000 features the Echo Sonic Pro audio system, which delivers clear and detailed target signals. This advanced audio technology produces rich and layered sound responses that allow prospectors to distinguish subtle gold signals from surrounding ground noise. Improved audio feedback increases confidence when identifying potential targets.
Ground Type Selection
The detector includes multiple ground type settings that allow it to adapt to various soil conditions. These settings optimize detection performance depending on the mineralization level of the ground. By automatically adjusting to the terrain, the GPZ 8000 maintains stable operation and consistent detection performance even in highly mineralized environments.
Multiple Search Modes
The GPZ 8000 provides several specialized search modes that allow prospectors to adjust the detector based on ground conditions and target size.
Normal Mode – General detecting in moderate ground conditions
Difficult Mode – Designed for highly mineralized soil
Difficult Deep Mode – Maximum depth in mineralized conditions
Normal Extra Deep Mode – Optimized for locating large deep gold targets
These modes help users customize the detector to achieve the best possible performance in different prospecting environments.
Adjustable Sensitivity Controls
The GPZ 8000 allows users to fine-tune sensitivity levels depending on soil conditions and target size. The detector includes manual sensitivity levels, automatic sensitivity adjustment, and an Auto+ mode that increases sensitivity while maintaining stable operation. These options help balance maximum depth performance with reduced noise in challenging ground.
Automatic and Manual Noise Cancel
The detector includes both automatic and manual noise cancel systems that reduce interference caused by nearby electrical sources or environmental factors. This feature ensures stable operation and clearer target signals, allowing prospectors to focus on valuable targets rather than background noise.
Lightweight and Balanced Design
Despite its powerful detection capabilities, the GPZ 8000 is designed with a balanced shaft system that improves handling and reduces fatigue. Weighing approximately 2.78 kg (6.1 lbs), the detector is built to provide comfortable operation during extended prospecting sessions.

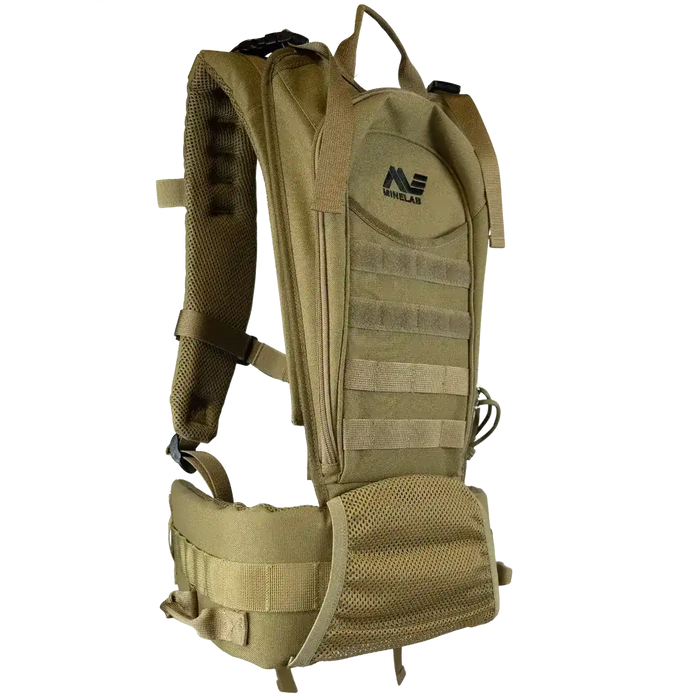

PRO-SWING 125 Harness System
The included PRO-SWING 125 harness distributes the detector’s weight across the shoulders and hips rather than the arms. This ergonomic harness reduces strain and allows prospectors to operate the detector comfortably for longer periods while maintaining full control.
GA10 Guide Arm
The GA10 guide arm improves detector stability and swing control during operation. It helps maintain smooth coil movement across the ground while reducing strain on the user’s arm, making long prospecting sessions more manageable.
Full Color LCD Display
The GPZ 8000 features a full-color LCD screen that clearly displays settings, sensitivity levels, and operational information. The screen includes adjustable backlighting, making it easy to read in both bright sunlight and low-light conditions.
Waterproof Construction
The detector is designed with sealed components that allow operation in wet environments and shallow water. The GPZ 8000 is waterproof to 1 meter (3.3 feet) for up to 30 minutes, making it suitable for use in damp ground, streams, and shallow water areas.
Rechargeable Lithium-Ion Battery System
The GPZ 8000 uses a removable lithium-ion battery system that provides reliable power for long prospecting sessions. The rechargeable battery pack is designed for extended field use and can be easily swapped when needed.
This comprehensive suite of features and capabilities makes the GPZ 8000 the top-tier choice for serious gold prospectors seeking to maximize efficiency and success in finding gold at varying depths and challenging environments.
