XP Deus II WS6 Stereo Master FMF Metal Detector with 9" Coil

The XP DEUS II WS6-ST Master Metal Detector with 9" FMF Coil delivers the performance of XP's DEUS II Fast Multi Frequency platform in an exceptionally lightweight, compact and completely wireless configuration.

Instead of using the separate full-size DEUS II Remote Control, this package uses the WS6-ST stereo wireless headphone module as the detector's master controller. The WS6-ST connects directly to the 9" FMF search coil, displays Target ID, controls detector settings and provides stereo wireless audio.

Combined with the 9" / 22.5 cm FMF coil and lightweight S-Telescopic Lite stem, the complete detector weighs from approximately 750 g / 1.65 lb, making it an excellent option for detectorists who prioritize low weight, target separation and mobility without giving up the core DEUS II detecting platform.

Manufacturer SKU: DEUS2-22FMFWS6STE

Important: This is a WS6-ST Master configuration. A separate DEUS II Remote Control is not included.

---

Key Features

• XP FMF – Fast Multi Frequency technology

• 9" / 22.5 cm round wireless FMF coil

• Approximately 4–45 kHz frequency range

• 49 selectable single frequencies

• WS6-ST Master stereo headphones and controller

• No separate DEUS II Remote Control required

• Detailed 64 × 64 pixel WS6-ST display

• Accurate Target ID display

• 12 factory programs + 12 user programs

• Adjustable discrimination, Reactivity, ground balance and audio

• MI-6 wireless pinpointer compatibility

• 15-hour WS6-ST battery life

• Coil battery life up to approximately 20 hours

• 9" coil waterproof to 20 m / 66 ft

• WS6-ST is weatherproof

• Fully wireless XP radio architecture

• S-Telescopic Lite stem

• Complete detector weight from approximately 750 g / 1.65 lb

• USB-C charging for WS6-ST

• Software-updatable platform

• Made in France

• XP 5-year warranty, subject to XP warranty terms

---

XP Fast Multi Frequency Technology

The DEUS II platform uses XP's FMF – Fast Multi Frequency – technology, allowing the detector to process multiple frequencies according to the selected search program.

Different frequencies respond differently to target size and conductivity. Lower frequencies generally favor larger and higher-conductivity targets, while higher frequencies increase sensitivity to smaller and lower-conductivity targets.

The standard 9" DEUS II FMF coil operates across approximately 4–45 kHz, providing strong versatility for:

• Coins

• Relics

• Jewelry

• Parks

• Fields

• Beaches

• Mineralized soil

• Small targets

• Gold prospecting

For users who prefer individual frequency control, DEUS MONO provides 49 selectable single frequencies across the operating range.

---

9" FMF Search Coil

The included 9" / 22.5 cm round FMF coil is the lightest of XP's three standard DEUS II FMF coil sizes.

Its compact footprint makes it particularly effective in areas containing closely spaced targets, iron contamination, vegetation or physical obstacles.

9" Coil Advantages

• Excellent target separation

• Excellent maneuverability

• Low swing weight

• Precise coil placement

• Effective around iron and modern trash

• Easy to use around roots, rocks and vegetation

• Strong all-purpose FMF performance

It is especially well suited to old home sites, cellar holes, wooded areas, parks and historically productive locations where desirable targets may be positioned close to nails or other unwanted metal.

---

WS6-ST Master: Headphones and Detector Controller in One

The defining feature of DEUS2-22FMFWS6STE is the WS6-ST Master.

The WS6-ST is not simply a pair of wireless headphones. Its removable electronic module contains a display and detector controls, allowing it to communicate directly with the FMF search coil.

With no separate DEUS II Remote Control installed, the WS6-ST becomes the master of the detector.

It can:

• Control the FMF search coil

• Display Target ID

• Select search programs

• Adjust detector settings

• Control discrimination

• Adjust Reactivity

• Manage ground settings

• Adjust audio

• Display coil and headphone battery levels

• Store compatible search coils

• Connect wirelessly to the XP MI-6 pinpointer

This allows users to retain the core functionality required for serious detecting while eliminating the weight of the larger Remote Control.

---

Three Ways to Use the WS6-ST

One advantage of the WS6-ST design is its flexibility.

1. WS6-ST on the Headphones

The control module remains clipped directly into the backphones.

This creates the lightest and simplest configuration, with detector controls and stereo audio available from the headset.

2. WS6-ST Mounted on the Stem

The WS6-ST module can be removed from the headphones and positioned on the detector stem using a compatible WS6 support.

This puts the screen directly in front of the user for easier access to:

• Target ID

• Settings

• Programs

• Battery information

Compatible separate headphones can then be used for audio.

3. WS6-ST with an Optional DEUS II Remote

A full DEUS II Remote Control can be added separately.

When a Remote Control is used as the master, the WS6-ST can operate as the wireless stereo headphone system.

This makes the WS6-ST Master package an expandable entry point into the wider DEUS II ecosystem.

Important: The WS6-ST is weatherproof, not fully submersible. The included FMF search coil is waterproof to 20 m / 66 ft.

---

12 Factory Programs + 12 User Programs

Despite its smaller control module, WS6 Master provides 12 factory programs plus 12 user-program positions.

Program	Primary Use
General	Everyday detecting, coins, jewelry and mixed terrain
Sensitive	Small targets and mineralized ground
Sensi FT	Full Tones and faster target response
Fast	Iron-heavy and contaminated sites
Park	Parks, recreational areas and modern trash
Deep HC	Deeper high-conductivity targets
Deus Mono	Selectable single-frequency operation
Gold Field	Gold prospecting and mineralized soil
Relic	Larger or deeper relic targets
Diving	Saltwater-oriented detector program
Beach	Wet salt sand and surf
Beach Sens	Increased sensitivity in salt environments

The additional 12 user slots allow detectorists to modify and save settings for their own sites and hunting styles.

---

Advanced Detector Controls

The WS6 Master provides access to important DEUS II detector functions including:

• Discrimination

• Sensitivity

• Reactivity

• Audio Response

• Iron Volume

• Notch

• Threshold

• Ground Grab

• Ground adjustment

• Target ID

• Frequency selection

• Pinpoint / non-motion operation

• Audio settings

• Fast Frequency Scan for EMI management

• User program storage

A configurable 4-band equalizer also allows the audio response to be adjusted to the user's hearing preferences and hunting conditions.

---

Ultra-Lightweight DEUS II Configuration

Weight is one of the biggest reasons to choose this package.

With the 9" FMF coil and WS6-ST Master configuration, the DEUS II weighs from approximately:

750 g / 1.65 lb

This makes it considerably lighter than many conventional detectors that use a control box, coil cable and larger shaft assembly.

The lower weight can be especially valuable for:

• Long detecting sessions

• Large properties

• Woods and uneven terrain

• Older detectorists

• Users with shoulder or arm fatigue

• Detectorists who travel frequently

• Fast searching through dense target areas

---

S-Telescopic Lite Stem

The WS6 Master package uses XP's S-Telescopic Lite stem, further reducing overall detector weight.

The fully telescopic design allows the detector to collapse quickly for transportation and expand for detecting without conventional multi-piece shaft assembly.

Approximate stem specifications:

Specification	Details
Type	XP S-Telescopic Lite
Stem Weight	Approx. 305 g
Folded Length	Approx. 58 cm
Extended Length	Approx. 130 cm
Design	Telescopic S-shaped stem

---

XP Wireless Architecture

The search coil contains its own electronics and communicates with the WS6-ST through XP's proprietary radio protocol.

There is no conventional coil cable running up the detector shaft.

Compatible XP components can communicate wirelessly within the system, including:

• DEUS II FMF search coil

• WS6-ST Master

• Optional DEUS II Remote Control

• Compatible XP headphones

• Optional XP MI-6 pinpointer

The wireless design keeps the detector uncluttered while helping reduce overall weight.

---

Coin, Relic & Jewelry Hunting

The combination of the 9" coil and adjustable Reactivity makes this configuration particularly attractive for locations with dense target concentrations.

For coin hunting, the compact coil can help isolate coins from nearby trash.

For relic hunting, its smaller detection footprint helps work between nails and other ferrous objects often found around historic structures and camps.

For jewelry hunting, FMF frequency coverage provides sensitivity across targets with different sizes and conductivities.

This makes the 9" WS6-ST Master configuration a strong choice for:

• Parks

• Old homes

• Farm fields

• Cellar holes

• Historic sites

• Wooded areas

• Recreational locations

• Dry and wet beaches

---

Beach & Water Performance

XP designed the WS6 Master platform for performance on both land and beaches.

Dedicated Beach and Beach Sens programs help manage electrically conductive wet salt sand and saltwater conditions.

The 9" FMF coil is waterproof to 20 m / 66 ft.

However, the WS6-ST control module itself is weatherproof rather than submersible. If the coil is submerged, XP specifies that an appropriate underwater antenna arrangement is required for wireless signal transmission.

This distinction is important when choosing between shoreline detecting and a dedicated underwater DEUS II configuration.

---

Gold Prospecting & Mineralized Ground

DEUS II includes Gold Field, a program designed for mineralized gold-bearing ground.

The standard FMF coil reaches approximately 45 kHz, providing sensitivity to smaller and lower-conductivity targets while maintaining broad all-purpose versatility.

For users primarily searching for extremely small natural gold, XP's HF2 high-frequency coil provides more specialized high-frequency capability. The 9" standard FMF coil is better suited to detectorists who want strong gold capability alongside coins, relics, jewelry and beach hunting.

---

XP DEUS II Coil Comparison: 9" vs 11" vs 13" x 11"

Feature	9" FMF Coil	11" FMF Coil	13" x 11" FMF Coil
Dimensions	9" / 22.5 cm	11" / 28 cm	13" x 11" / 34 x 28 cm
Frequency Range	4–45 kHz	4–45 kHz	4–45 kHz
Single Frequencies	49	49	49
Weight	Approx. 345 g	Approx. 470 g	Approx. 570 g
Target Separation	Excellent	Very Good	Good
Maneuverability	Excellent	Very Good	Moderate
Iron-Heavy Sites	Excellent	Very Good	Good
Ground Coverage	Moderate	Excellent	Maximum
Open Fields	Very Good	Excellent	Excellent
Beach Hunting	Very Good	Excellent	Excellent
Coin Hunting	Excellent	Excellent	Very Good
Relic Hunting	Excellent	Excellent	Excellent
Swing Weight	Lightest	Balanced	Heaviest
Best For	Separation, iron & tight areas	All-around balance	Maximum ground coverage

The 9" FMF coil included with DEUS2-22FMFWS6STE is the strongest choice when low weight, precise coil control, maneuverability and target separation are priorities.

The 11" provides more ground coverage and is an excellent general-purpose option, while the 13" x 11" is primarily advantageous in open terrain where maximum coverage per sweep is more important.

---

Battery Performance

Component	Approximate Battery Life
9" FMF Coil	Up to approx. 20 hours depending on program/frequency
WS6-ST Master	Approx. 15 hours

The WS6-ST uses USB-C charging and supports fast charging in less than approximately three hours.

Actual operating time varies with frequency, program, settings, temperature and battery condition.

---

MI-6 Pinpointer Compatibility

The WS6-ST supports wireless connection with the XP MI-6 Pinpointer, available separately.

When paired with the XP system, the MI-6 can communicate directly with the detector and compatible XP audio equipment, creating a more integrated target-recovery workflow.

MI-6 is not included with DEUS2-22FMFWS6STE unless specifically offered as a separate Detector Warehouse bundle.

---

Software Updates

The DEUS II / WS6 Master platform is software updateable via USB.

XP can therefore introduce compatible refinements and functionality through firmware without requiring replacement of the detector's main hardware.

For best compatibility and performance, XP recommends keeping the system on the appropriate current firmware for the installed hardware.

---

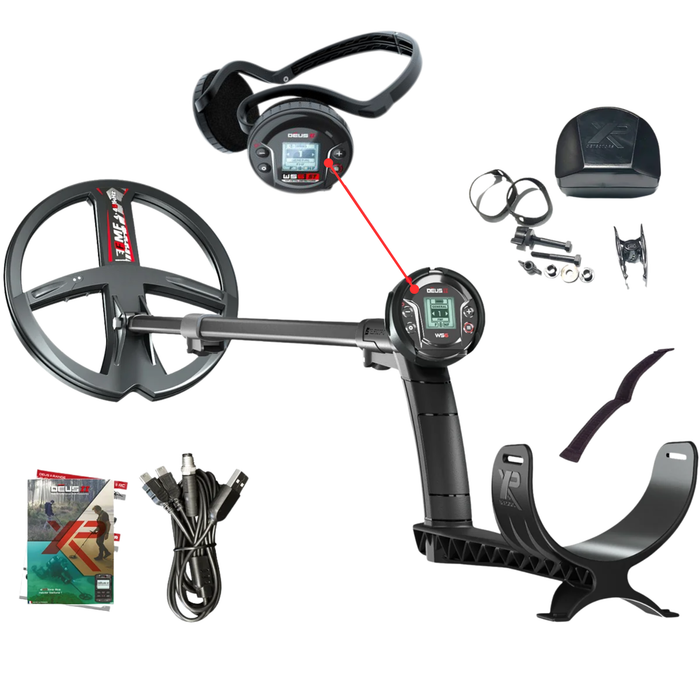

What's Included

The DEUS2-22FMFWS6STE package includes:

• XP DEUS II WS6-ST Master Metal Detector

• 9" / 22.5 cm FMF wireless search coil

• Search coil cover

• WS6-ST stereo wireless headphones / control module

• WS6-ST headphone assembly

• WS6 module stem support

• Headphone storage case

• S-Telescopic Lite stem

• Lower stem

• Coil fitting hardware

• Charging cable

• Update / charging cable

• Coil charging connection clamp

• Standard XP documentation

A separate full DEUS II Remote Control is not included in this configuration.

---

Who Is This Configuration Best For?

Relic Hunters
The lightweight 9" coil provides excellent separation around iron and historic debris.

Coin Hunters
Compact coil control and FMF performance work particularly well in parks and older sites.

Detectorists Hunting Trashy Ground
The 9" coil helps isolate desirable targets positioned close to unwanted metal.

Woods & Rough Terrain Hunters
Low weight and excellent maneuverability make it easy to work around trees, roots and vegetation.

Traveling Detectorists
The telescopic design and minimal hardware produce a highly portable setup.

Detectorists Who Want Minimum Weight
At approximately 750 g in its lightest 9" configuration, the WS6-ST Master is substantially lighter than conventional full-control-box detectors.

Users Who Want Future Expandability
A compatible full DEUS II Remote Control, MI-6 pinpointer and other XP accessories can be added separately.

---

Frequently Asked Questions

What is DEUS2-22FMFWS6STE?

It is the XP DEUS II WS6-ST Master package with a 9" / 22.5 cm FMF search coil, WS6-ST stereo headphones/controller and S-Telescopic Lite stem.

Does DEUS2-22FMFWS6STE include the DEUS II Remote Control?

No. This is a WS6-ST Master configuration. The WS6-ST module acts as the detector's main controller.

Can the WS6-ST control the detector without a Remote?

Yes. It connects directly to the search coil and controls detector settings while displaying Target ID and other information.

Can I add a DEUS II Remote Control later?

Yes. The WS6-ST can work with a compatible DEUS II Remote Control if one is added separately. In that configuration, the Remote becomes the master and the WS6-ST can function as the stereo wireless headphone system.

What frequencies does the 9" FMF coil use?

The coil operates across approximately 4–45 kHz and provides Fast Multi Frequency operation plus 49 selectable single frequencies.

How much does this configuration weigh?

XP lists the 9" WS6 Master configuration from approximately 750 g / 1.65 lb.

How much does the 9" coil weigh?

Approximately 345 grams.

Is the 9" FMF coil waterproof?

Yes. XP rates the coil waterproof to 20 meters / 66 feet.

Is the WS6-ST waterproof?

The WS6-ST is weatherproof rather than fully submersible.

How many programs are available?

WS6 Master provides 12 factory programs plus 12 user-program positions.

How long does the battery last?

The WS6-ST provides approximately 15 hours, while the FMF coil can operate for up to approximately 20 hours, depending on program and frequency.

Is the MI-6 Pinpointer compatible?

Yes. The WS6-ST supports wireless connection with the XP MI-6 Pinpointer. The MI-6 is sold separately unless included in a specific bundle.

Is this detector good for beaches?

Yes. DEUS II includes dedicated Beach and Beach Sens programs for conductive salt environments.

Is it good for gold prospecting?

Yes. Gold Field mode and frequencies reaching approximately 45 kHz provide natural-gold capability. XP's HF2 coil is the more specialized option for extremely small gold.

Can the detector be software updated?

Yes. The WS6 Master system supports USB software updates.

---

Final Overview

The XP DEUS II WS6-ST Master with 9" FMF Coil is designed for detectorists who want DEUS II multi-frequency performance in the lightest, simplest configuration possible.

Its 4–45 kHz FMF platform, 49 selectable single frequencies, compact 9" coil, 12 factory programs, advanced target controls and WS6-ST stereo controller/headphone system provide the versatility needed for coins, relics, jewelry, parks, fields, beaches and mineralized ground.

The biggest difference is simplicity: there is no separate DEUS II Remote Control to carry. The WS6-ST becomes the detector's control center while the S-Telescopic Lite stem and 9" coil keep the complete setup at approximately 750 g.

For detectorists who prioritize low weight, excellent target separation, wireless operation and full DEUS II FMF capability without purchasing the full Remote package, DEUS2-22FMFWS6STE is an especially compelling configuration.
